Photographs are required of each thermal element to show continuity and quality of insulation in the following areas, plus other key components

  • Foundations / substructure / ground floor.

    1: At ground floor perimeter edge insulation

    2: At external door threshold

    3: Below damp proof course on external walls

  • External walls

    1: Ground floor to wall insulation

    2: Structural penetrations (such as lintels)

  • Roof.

    For each roof main type

    1: Joist rafter level

    2: Gable ends and eaves

  • Openings

    For each opening type (one image per wall or roof type is sufficient)

    1: Window positioning in relation to cavity closer or insulation line

    2: External door set postioning in relation to cavity closer or insulation line

  • Airtightness

    Additional photos required to show details of airtightness work if not shown in continuity of insulation photos.

    This could include mastic sealing of internal or external penetrations

  • Building services

    For all plant associated with space heating, hot water, ventilation and low or zero carbon technologies within in or on the building to show the following

    1: Plant/Equipment indntification label(s)including make/model and serial number

    2: Primary pipework continuity of insulation

    3: Mechanical ventilation ductwork continuity of insulation (for duct sections outside of thermal envelope)

Taking the right photographs the right way shouldn't be challenging or time consuming.

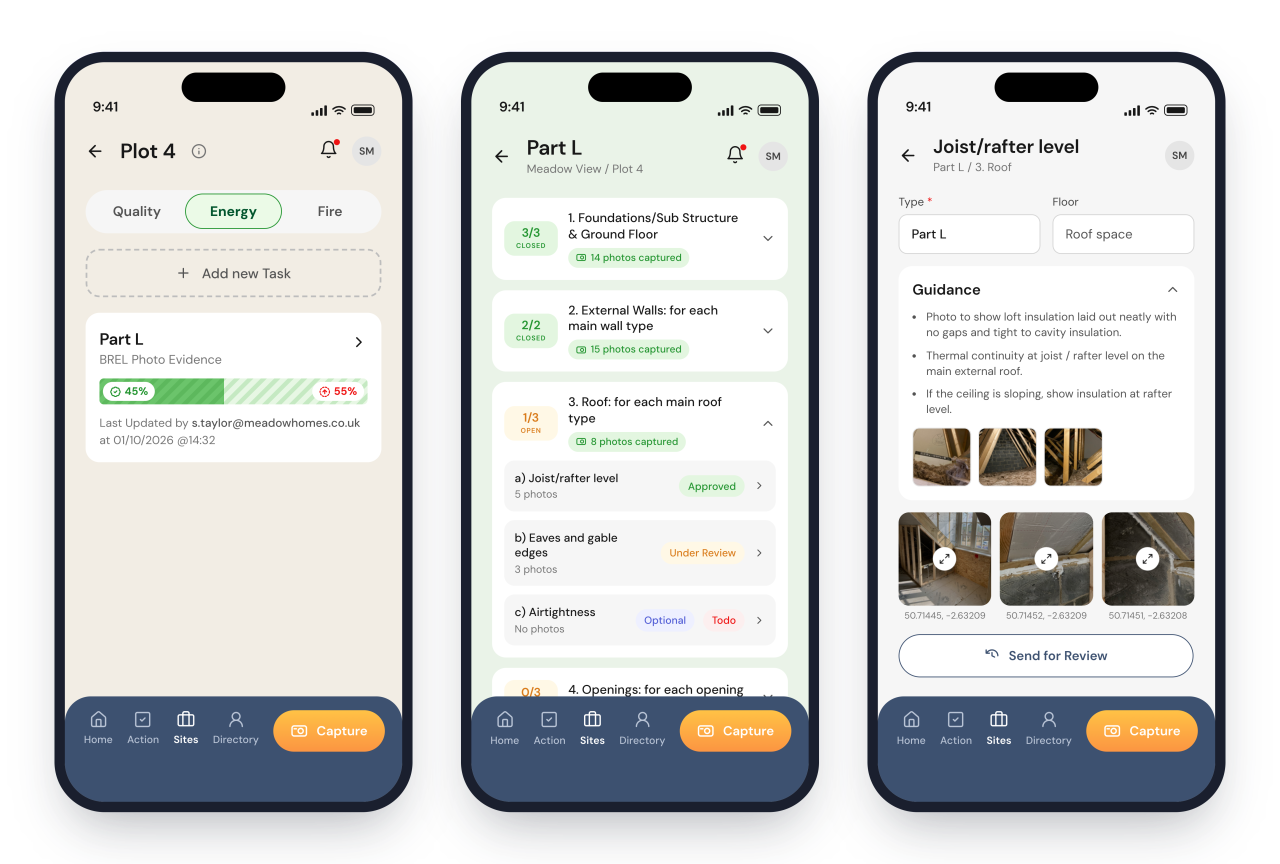

As SAP assessors, have had to review thousands of photos in various apps that are available for this task, and by far the best app available is PlotTech.
